CGX-L Equatorial Mount and Tripod
Code: 91531
Description
-
Increased 75 lb load capacity. Exceptional load capacity to weight ratio
-
Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
-
Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
-
Longer 270mm dovetail saddle to better support larger optical tubes
-
Massive 70mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
-
Accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
-
Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
-

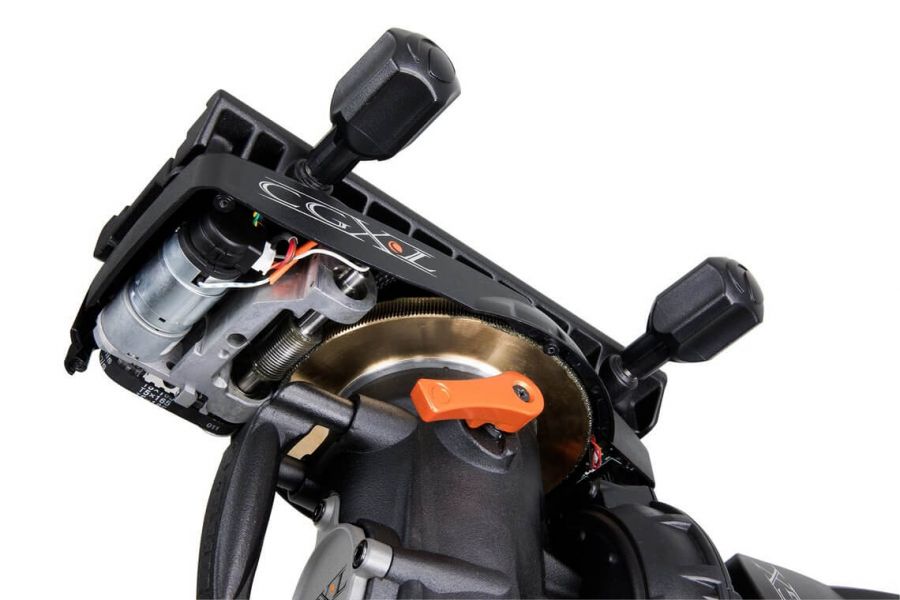

Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
-
Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
-
Includes Celestron's PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
-
Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
-
Integrated handles for easy transport and portability
-
Ergonomically designed dovetail clamping knobs
- Increased 75 lb load capacity. Exceptional load capacity to weight ratio
- Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
- Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
- Longer 270mm dovetail saddle to better support larger optical tubes
- Massive 70mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
- Accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
- Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
- Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
- Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
- Includes Celestron's PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
- Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
- Integrated handles for easy transport and portability
- Ergonomically designed dovetail clamping knobs
- Manufacturer: Celestron
- Weight: 55.000 Kgs
| Mount Info: | |
|---|---|
| Mount Type | Computerized Equatorial |
| Instrument load capacity | 75 lbs (34 kg) |
| Height adjustment range (includes mount and tripod) | 908.05mm - 1339.85mm (35.75" - 52.75") |
| Tripod Leg Diameter | 69.85mm (2.75") Steel tripod with graduated markings on lower section |
| Latitude adjustment range | 3° - 65° |
| Mount Head Weight | 52.6 lbs (23.8 kg) |
| Accessory Tray | Yes |
| Tripod Weight | 46.2 lbs (21 kg) |
| Weight of Counterweights | 1 x 22 lbs |
| Slew Speeds | 9 slew speeds - max speed 3°/second |
| Tracking Rates | Sidereal, Solar and Lunar |
| Tracking Modes | EQ North & EQ South |
| GPS | N/A |
| Dovetail Compatibility | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary ports | 4 Aux ports (Hand Control can use any Aux port, 2 are located near the dovetail saddle for optional accessories) |
| Autoguide port | Yes, 2 ports (one is located near the dovetail saddle) |
| USB Port | Yes, input for Mount and Hand Control |
| Power Requirements | 12V DC, 3 amps |
| Motor Drive | DC servo motors |
| Alignment Procedures | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction | Yes |
| Computerized Hand Control | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection |
| NexStar+ Database | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software | CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, SkyPortal App |
| Total Kit Weight | 120.8 lbs (54.8 kg) |
| Included Items | CGX-L Equatorial Head | CGX-L Tripod | Accessory Tray | 1 x 22 lbs counterweight | NexStar+ Hand Control | DC Power Cable (item# 18769) | 8mm Allen wrench (contained in rear carry handle) |
