Height adjustment range (includes mount and tripod)
762mm - 1270mm (30" - 50")
Tripod Leg Diameter
31.75mm (1.25") Stainless steel
Mount Head Weight
5 lbs (2.3kg)
Accessory Tray
Yes
Tripod Weight
5 lbs (2.3kg)
Slew Speeds
9 slew speeds - max speed 3°/second
Tracking Rates
Sidereal, Solar and Lunar
Tracking Modes
Alt-Az, EQ North and EQ South
GPS
N/A
Dovetail Compatibility
CG-5 saddle plate

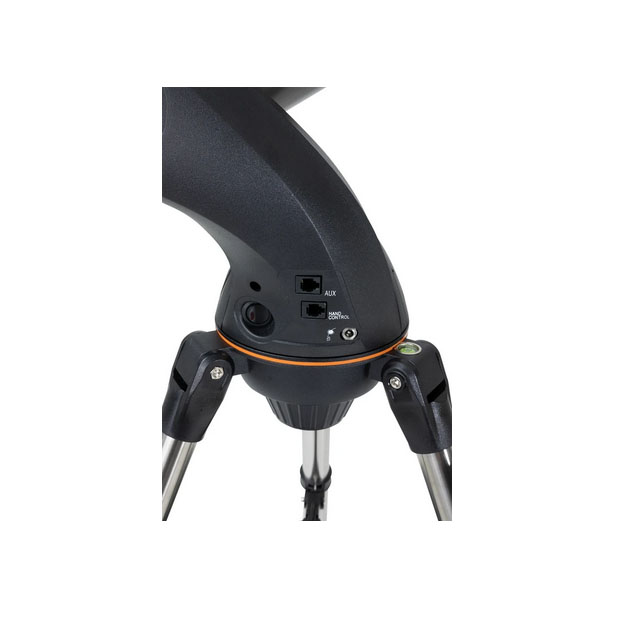

Number of Auxiliary ports
1x Aux port | 1x hand control port (hand control can use either port)
Autoguide port
No
USB Port
Yes, Input on hand control
Power Requirements
12 VDC - 8xAA Batteries (not included)
Motor Drive
DC Servo Motor
Alignment Procedures
SkyAlign, Auto 2-Star Align, 1-Star Align, 2-Star Align, Solar System Align
Periodic Error Correction
No
Computerized Hand Control
1 Hand Control Port and 1 Aux Port
NexStar+ Database
Over 40,000 including 220 of the best deep sky and solar system objects
Software
Celestron's Starry Night Special Edition Software, SkyPortal App
Total Kit Weight
18 lbs (8.2 kg)

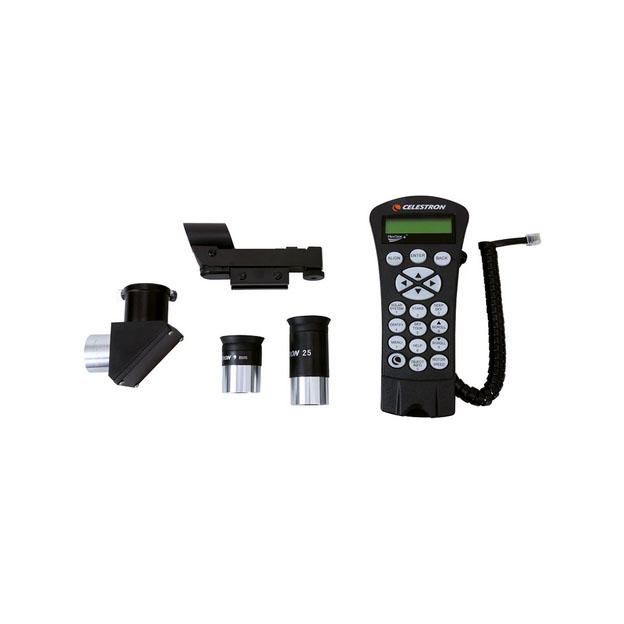

Included Items
Optical Tube | Single Fork Arm Mount & Tripod | Accessory Tray| NexStar+ Hand Control | 20mm & 9mm eyepiece | StarPointer™ red dot finderscope | Star Diagonal
These eyepieces deliver a pure-white image with outstanding sharpness and contrast, 50° field of view, sharp field-stops, and true High-Transmission- (HT) and Multi-Coating on all glass-air-surfaces. The eyepieces are parfocal
highest comfort and (in combination with the Barlow-lens) many focal lengths with just one set of eyepieces: 2,7mm, 4,6mm, 6mm, 8mm, 14mm, 18mm, 32mm
Baader Q-Turret eyepiece-revolver set - selected as Hot Product in 2014 by Sky&Telescope
Hyperion Universal Zoom Mark IV: fourth generation of Baader-Zoom, 68° Widefield eyepiece with five magnifications - focal lenghts 8, 12, 16, 20 and 24mm clearly defined with "smoothed-out" improved Clickstop Action (a must for effortless binoviewing)
Long eye relief, perfectly matched to the human eye. Flatfield design – sharp right to the edge of field
High Quality Phantom Coating™ Group Multicoatings! For faintest objects, maximum contrast and total freedom from reflections
Large adjustable rubber eyecup, smaller straight rubber eyecup and winged, foldable eyecup included, to fit over M43 photo/video-thread
M43-Video-Photo thread for afocal and classical projection photography, permits optional adaptation of practically any camera with optional accessories
Includes 2" and 1¼" barrel, usable for all 1¼" binoculars with detachable eye-rest and spotting scope with 1 3/8" thread (Celestron / Sky-Watcher and others)
The Celestron Focus Motor enables electronic focusing using a computer or Celestron computerized mount hand controller for remote/hands-free observing.
Self-powering: When connected to a Celestron computerized mount, the mount provides the power. When connected directly to a computer, USB provides the power.
Compatible with a wide variety of Celestron Schmidt-Cassegrain, EdgeHD, and Rowe-Ackermann Schmidt Astrograph optical tubes. Check description for full list.
Motor controls include multiple speed rates, automatic GoTo indexed focuser position, and focuser backlash compensation.
Focuser Utility software for Windows provides a simple user interface. Also compatible with Celestron PWI.
Enables autofocusing with a camera and third-party software via ASCOM.
Indexed focus position allows the motor to automatically return to a previous focus position and prevents the focus motor from reaching the end of telescope’s mechanical focus travel.
A complete digiscoping solution: NexYZ connects your smartphone to an eyepiece while the Bluetooth shutter release button helps you get a steady shot every time.
NexYZ’s patented design works with telescopes (with most 1.25” or 2” eyepieces), spotting scopes, binoculars, monoculars, and microscopes (with the included adapter rings).
Connect the remote shutter release to your phone via Bluetooth to take photos or start/stop video recording without unwanted vibration.
Both devices work with virtually all smartphone models, including the latest devices from Apple, Samsung, and Google.
NexYZ features three directional knobs (X-, Y-, and Z-axis) that perfectly align your phone’s camera with the eyepiece in seconds. In addition, you can make tension adjustments to keep the phone firmly in place.
NexYZ stands up to rigorous field use thanks to its robust, durable construction with a metal frame and polymer body.
